E4V - F (hermetic)

E4V-F*
E4V - F (hermetic)
E4V - F (hermetic) E4V - F (hermetic) E4V - F (hermetic)

  • General characteristics

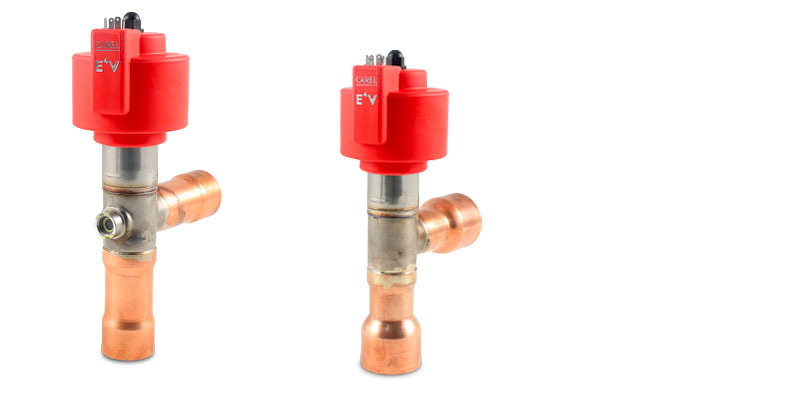

    The CAREL E4V electronic valve is designed to act as the expansion device on medium/high capacity chillers and air-conditioning systems, up to a cooling capacity of 280 kW.
    Reliability, wide control capacity, fluid flow in both directions: these three features are all ensured by the E4V expansion valve, satisfying the need for a high product quality combined with operating and installation versatility.

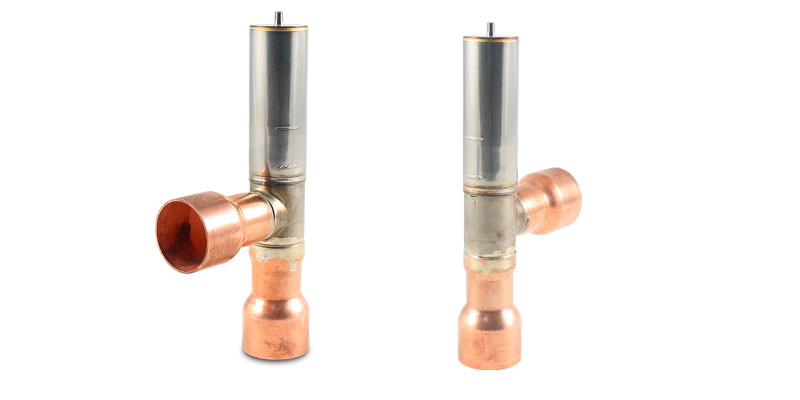

    The E4V-F is the hermetic version of the E4V valve family, also designed for flammable refrigerants.
    The E4V-F incorporates the same features as the demountable version, such as high quality welding, three different sizes and the options with or without sight glass.



Documentation

Technical

  • Technical Leaflets
    Code Description Language Date * Release
    Code +050001695

    Description E4V-F - Valvola di espansione elettronica / Electronic expansion valve / Soupape à détente électrique / Elektronisches Expansionsventil / Válvula de expansión electrónica

    Language ENG  FRE  GER  ITA  SPA

    Date 07/02/2020

    Release 1.4
