Level sensor

LSR*
Level sensor
Level sensor Level sensor

  • General characteristics

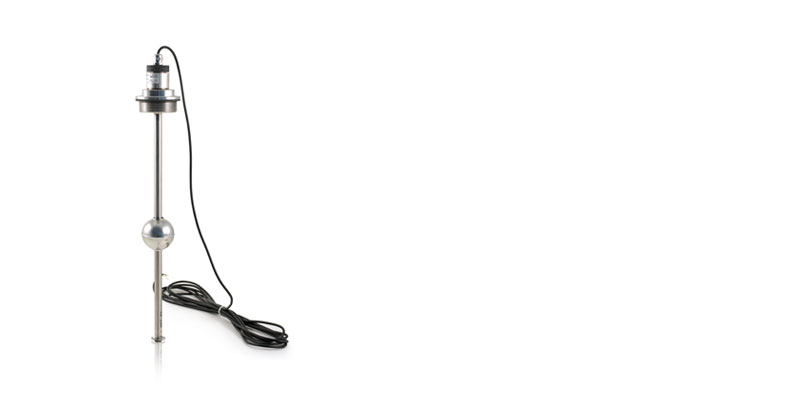

    This level sensor measures the amount of refrigerant in heat exchangers. When there is a change in level, the fl oat, fi tted with a magnet, slides on a vertical rod and magnetically activates an electrical contact on the rod, providing a resistive output signal that is proportional to the level measured.
    The output must be connected to a Carel electronic controller confi gured for this function.
    The amount of fluid can be determined based on the resistance measurement.
    The sensoris made from stainless steel, and therefore can resist extreme conditions where compatible with this material.




Documentation

Technical

  • Technical Leaflets
    Code Description Language Date * Release
    Code +0500075ML

    Description Il sensore di livello (a galleggiante per liquidi refrigeranti) / Level sensor (float for liquid refrigerants) / Le capteur de niveau (flotteur pour liquides de refroidissement) /Füllstandsensor (Schwimmer für Kältemittel) / El sensor de nivel (de flotador para líquidos refrigerantes)

    Language ENG  FRE  GER  ITA  SPA

    Date 28/06/2019

    Release 1.7

  • 2D/3D drawings
    Code Description Language Date * Release
    Code 2d-3d Level sensors

    Description 2D-3D drawings

    Language ALL

    Date 08/03/2021

    Release R0
