pCOe DI

pCOe DI

  • General characteristics

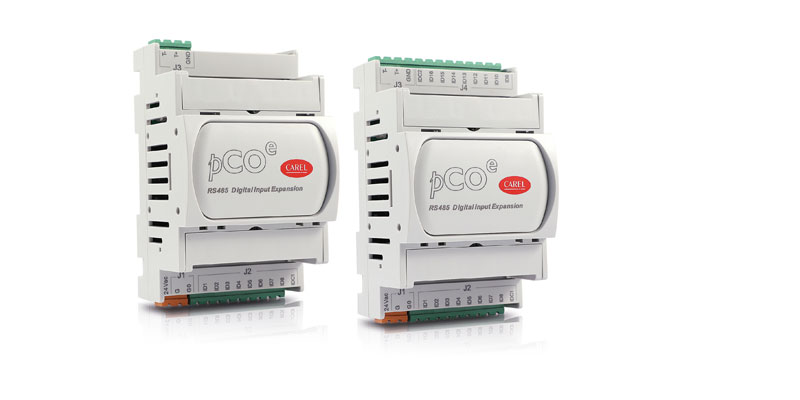

    pCOe DI is the I/O expansion card developed by CAREL to extend the number of digital inputs in a solution. The expansion features both voltage-free and fast contact digital inputs.


    The pCOe DI card is available in 2 versions:

    1. Version with 8 digital inputs
    2. Version with 16 digital inputs


  • Plus
    • DIN rail mounting (4 DIN)
    • Up to 16 digital inputs (voltage-free or fast contact)
    • 24 Vac/Vdc power supply
    • Integrated RS485 port
    • Modbus protocol


Documentation

Technical

  • Technical Leaflets
    * Entries are ordered by date
    Code Description Language Date * Release
    Code +050003271

    		 Description pCOE: I/O scheda di espansione UXPB******2** 24 Vac / I/O expansion board UXPB******2** 24 Vac

    		 Language ENG  ITA

    		 Date 03/09/2021

    		 Release 1.3


Images

  • High resolution images
    * Entries are ordered by date
    Code Description Language Date * Release
    Code PH21LPC301-pCOe-8

    		 Description pCOe DI-CAREL-Programmable ControlsI-/O expansions

    		 Language ALL

    		 Date 02/09/2021

    		 Release R.0

    Code PH21LPC302-pCOe-16

    		 Description pCOe DI-CAREL-Programmable Controls-I/O expansions

    		 Language ALL

    		 Date 02/09/2021

    		 Release R.0
