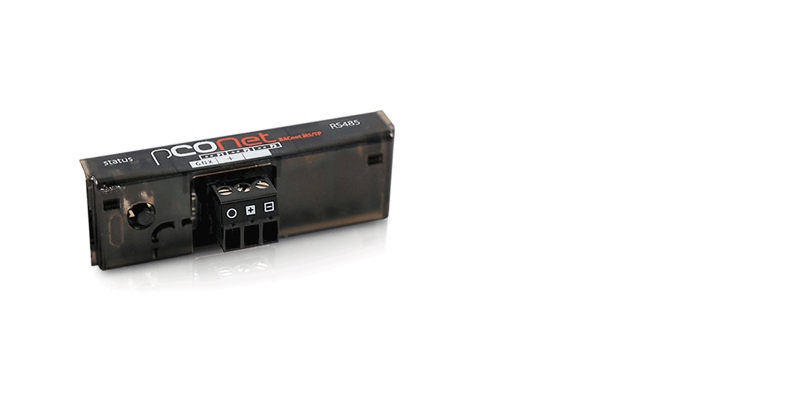

pCONet SE card

pCONet SE card
  • General characteristics

    The pCONet card is used to interface the pCO Sistema to networks that use the BACnet MS/TP protocol (RS485) in HVAC applications.

    BACnet is a communication protocol for building automation, based on the standards defined by US association ASHRAE (American Society of Heating, Refrigerating and Air-Conditioning Engineers). These standards consequently allow manufacturers to develop BACnet devices and make these interoperable with one another in different systems. Implementation of the standards is verified at BTL laboratories (BACnet Testing Laboratories) operated by the BACnet association. The pCONet card has been successfully tested by BTL laboratories. Reference website: bacnet.org.

    The pCONet card is compatible with the entire range of pCOSistema controllers that feature a BMS card slot: Supernode, pCOXs, pCO1, pCO3, pCO5 Compact, pCO5, pCO5+.




  • Technical Leaflets
    Code Description Language Date * Release
    Code +050000935
    Description PCO1***BD0 - pCOnet - Scheda di interfaccia BACnet MS/TP per pCO / BACnet MS/TP interface board for pCO
    Language ENG  ITA
    Date 05/10/2017
    Release 1.0


  • High resolution images
    Code Description Language Date * Release
    Code PH17LPC302-pCONET
    Description CAREL pCONet SE card - BMS (Building Management System) - Connectivity
    Language ALL
    Date 17/03/2022
    Release R.0
