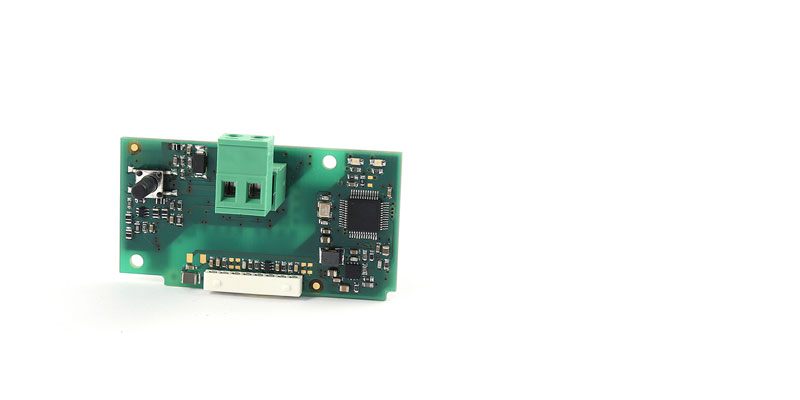

KNX card

KNX card
  • General characteristics

    CAREL KNX serial card is part of the range of optional cards for pCO, c.pCO, CAREL solution for managing HVAC/R applications and systems.  The card, acts as a gateway between a network operating according to the KNX/EIB protocol and the Modbus RTU protocol, supported directly by the firmware on pCO controller, the operating system on the c.pCO controller and the firmware on the e-drofan controller.

    To configure and install the card, the following are required: ETS5 professional program, Device Configuration Apps tool (DCA) (downloadable from KNX) and the product database (online catalogue KNX).




  • Manuals
    Code Description Language Date * Release
    Code +030220326
    Description Scheda KNX / KNX card
    Language ENG  ITA
    Date 13/05/2021
    Release 1.2


  • High resolution images
    Code Description Language Date * Release
    Code PH17LPC304-KNX-CAD
    Description CAREL KNX card - Connectivity - BMS (Building Management System)
    Language ALL
    Date 11/03/2022
    Release R.0
